Gladiator GV500G Vacuum Excavator Trailer

Product Overview

The Gladiator GV500G is a gas-powered, trailer-mounted vacuum excavator built by Gladiator HDD for contractors who need a lightweight, versatile, and field-ready vac solution. Powered by a 38 HP Kohler gas engine, the GV500G delivers 532 CFM of vacuum suction through a 3-inch, 20-foot hose via a rotary vane blower — providing strong, reliable performance for potholing, utility locating, hydro excavation, and directional drilling support work.

Manufactured by Gladiator HDD, the GV500G comes standard with a 500-gallon spoil tank, 220-gallon water supply, and a 4,000 PSI adjustable high-pressure wash pump — everything needed for efficient hydro excavation and slurry management on the jobsite.

Dimensions & Weights

The GV500G measures 21 ft 6 in in length, 98.5 in width, and 7 ft 6 in height. Empty weight is 6,200 lbs with a payload capacity of approximately 9,900 lbs and a GVWR of 16,100 lbs.

Vacuum System

The GV500G vacuum system features 0.5-micron filtration, a 20-foot 3-inch diameter hose, and a rotary vane blower delivering 532 CFM of airflow. Continuous vacuum is rated at 22 inHg, maximum internal vacuum at 27 inHg, and continuous pressure at 20 PSI — delivering the consistent suction needed to lift wet or dry spoil from depth on demanding excavation jobs.

High Pressure Wash Pump

The integrated high-pressure wash pump delivers 4 GPM at up to 4,000 PSI (adjustable) — powerful enough for hydro-excavation through compacted clay, rocky, and mixed soil conditions. The 220-gallon single water tank provides solid on-board supply for extended excavation runs before requiring a refill.

Spoil Tank & Tank Lift

The 500-gallon spoil tank is built with 1/4-inch shell and heads, rated for full pressure off and full vacuum. A hydraulic door with 8 manual wing nuts ensures a secure seal during operation and fast opening at the dump site. A hydraulic scissor lift system provides complete spoil discharge at a 50-degree tilt angle.

Running Gear & Chassis

The GV500G rides on two 7,000 lb single wheel axles with oil bath hubs, 16-inch 8-hole steel wheels, and 235/75R 16-inch 14-ply tires. The 12-inch x 2-inch electric brakes with self-charging break-away system ensure safe towing compliance. A 12,000 lb static drop leg jack provides stable, secure jobsite parking. Sealed beam lights with waterproof wiring in nylon tubing complete the road-legal package.

Standard Features

Engine: 38 HP Kohler Gas — Fuel Tank: 22 gal — Running Gear: Two 7,000 lb single wheel axles with oil bath hubs — Brakes: 12 x 2 in electric with self-charging break-away — Landing Gear: 12,000 lb static drop leg jack — Wheels: 16 in 8-hole Steel — Tires: 235/75R 16 in 14-Ply — Water Tanks: 220 gallon total (1 tank) — Spoil Tank: 500 gallons — Door Type: Hydraulic with 8 manual wing nuts — Tank Thickness: 1/4 in shell and heads — Tank Lift: Hydraulic scissor lift at 50 degree tilt — Control Panel: Curbside — Gauges: Analog.

Available Options

The GV500G can be configured with the following options: 650-gallon spoil tank upgrade, manual static 10-foot boom, hot water heater, custom paint color, valve exerciser, and internal wash out system.

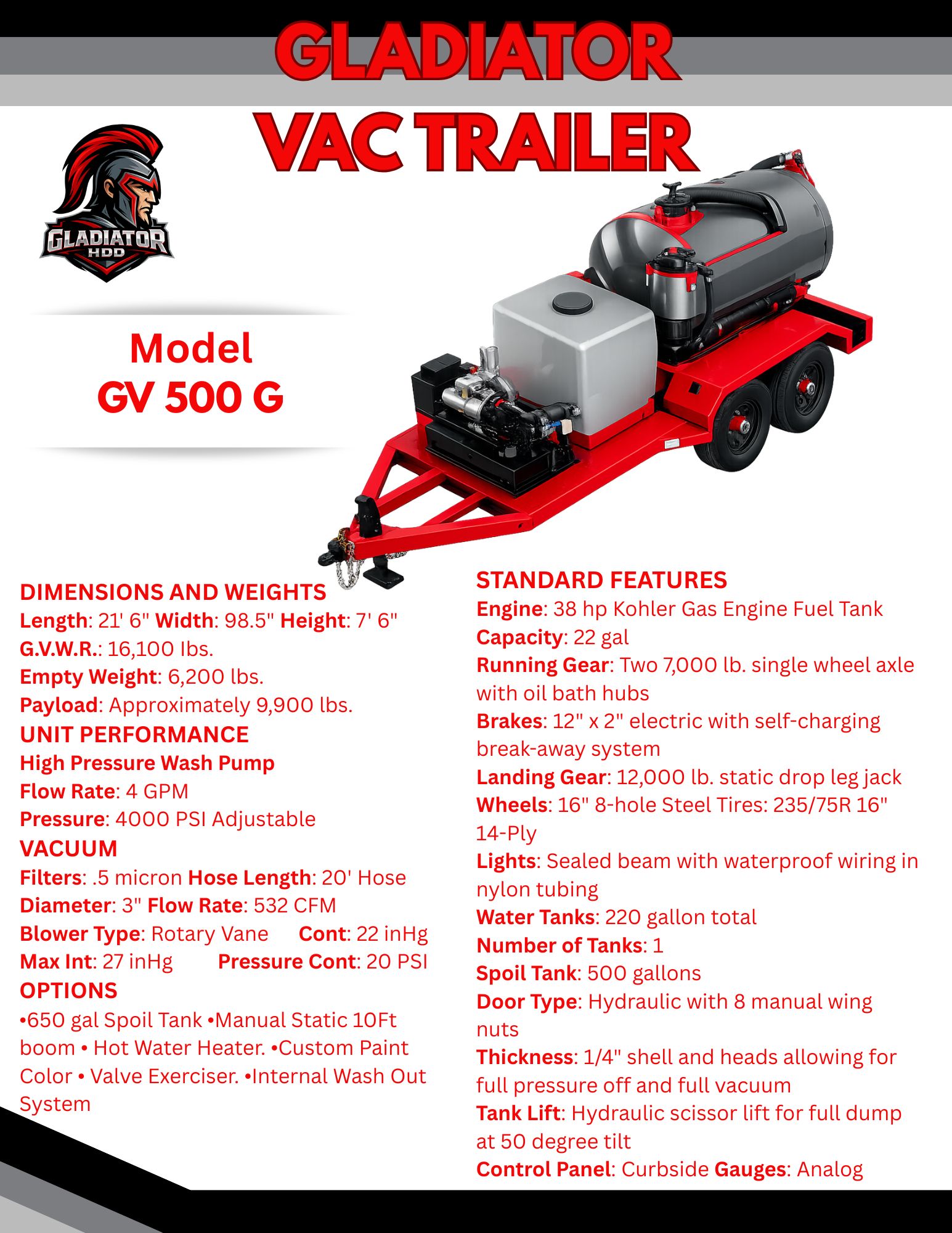

Official Product Sheet

Download the official Gladiator GV500G product specification sheet: View GV500G Spec Sheet. Contact Gladiator HDD or your authorized dealer for current pricing and availability.
