Gladiator GV500 Vacuum Excavator Trailer

Product Overview

The Gladiator GV500 is the diesel-powered, heavy-duty vacuum excavator trailer in the Gladiator HDD VAC lineup. Powered by a 36.9 HP water-cooled diesel engine, the GV500 delivers 431 CFM of vacuum suction through a 4-inch, 30-foot hose via a Tri Lobe blower at 24 inHg — built for contractors who need all-day diesel reliability, a larger spoil tank, and more water capacity on demanding utility and directional drilling jobsites.

Manufactured by Gladiator HDD, the GV500 features a 650-gallon spoil tank — 150 gallons more than the GV500G — along with 400 gallons of water across two tanks and an 18,400 lb GVWR, making it the preferred choice for high-volume excavation jobs where fewer dump cycles and more on-board water mean better shift productivity.

Dimensions & Weights

The GV500 measures 21 ft 6 in in length, 98.5 in width, and 7 ft 6 in height. Empty weight is 7,700 lbs with a payload capacity of approximately 10,700 lbs and a GVWR of 18,400 lbs.

Vacuum System

The GV500 vacuum system features 0.5-micron filtration, a 30-foot 4-inch diameter hose, and a Tri Lobe blower delivering 431 CFM at 24 inHg of suction pressure. The larger 4-inch hose diameter and Tri Lobe blower design provide excellent handling of thick slurry, cuttings, and mixed spoil — ideal for directional drilling fluid management and heavy hydro excavation applications.

High Pressure Wash Pump

The integrated high-pressure wash pump delivers 4 GPM at 4,000 PSI (adjustable). Two water tanks totaling 400 gallons provide extended hydro-excavation capacity — significantly reducing the frequency of water refill stops on long shifts or remote jobsites.

Spoil Tank & Tank Lift

The 650-gallon spoil tank is constructed with 1/4-inch shell and heads, designed to withstand full pressure off and full vacuum conditions. A hydraulic door with 8 manual wing nuts seals securely during operation and opens fully at the dump site. The hydraulic scissor lift system provides full dump capability at a 50-degree tilt for complete and fast spoil discharge.

Running Gear & Chassis

The GV500 rides on two 8,000 lb single wheel axles with oil bath hubs and 4-inch drop, 16-inch 8-hole steel wheels, and 235/75R 16-inch 14-ply tires. The 12 1/4-inch x 3 3/8-inch electric brakes with self-charging break-away system ensure safe towing at all times. A 12,000 lb static drop leg jack provides stable jobsite parking. Sealed beam lights with waterproof wiring in nylon tubing complete the road-legal setup.

Standard Features

Engine: 36.9 HP Water Cooled Diesel — Fuel Tank: 17 gal — Running Gear: Two 8,000 lb single wheel axles with oil bath hubs 4 in drop — Brakes: 12 1/4 x 3 3/8 in electric with self-charging break-away — Landing Gear: 12,000 lb static drop leg jack — Wheels: 16 in 8-hole Steel — Tires: 235/75R 16 in 14-Ply — Water Tanks: 400 gallon total (2 tanks) — Spoil Tank: 650 gallons — Door Type: Hydraulic with 8 manual wing nuts — Tank Thickness: 1/4 in shell and heads — Tank Lift: Hydraulic scissor lift at 50 degree tilt — Control Panel: Curbside — Gauges: Analog.

Available Options

The GV500 can be configured with the following options: hot water heater, custom paint color, valve exerciser, and internal wash out system.

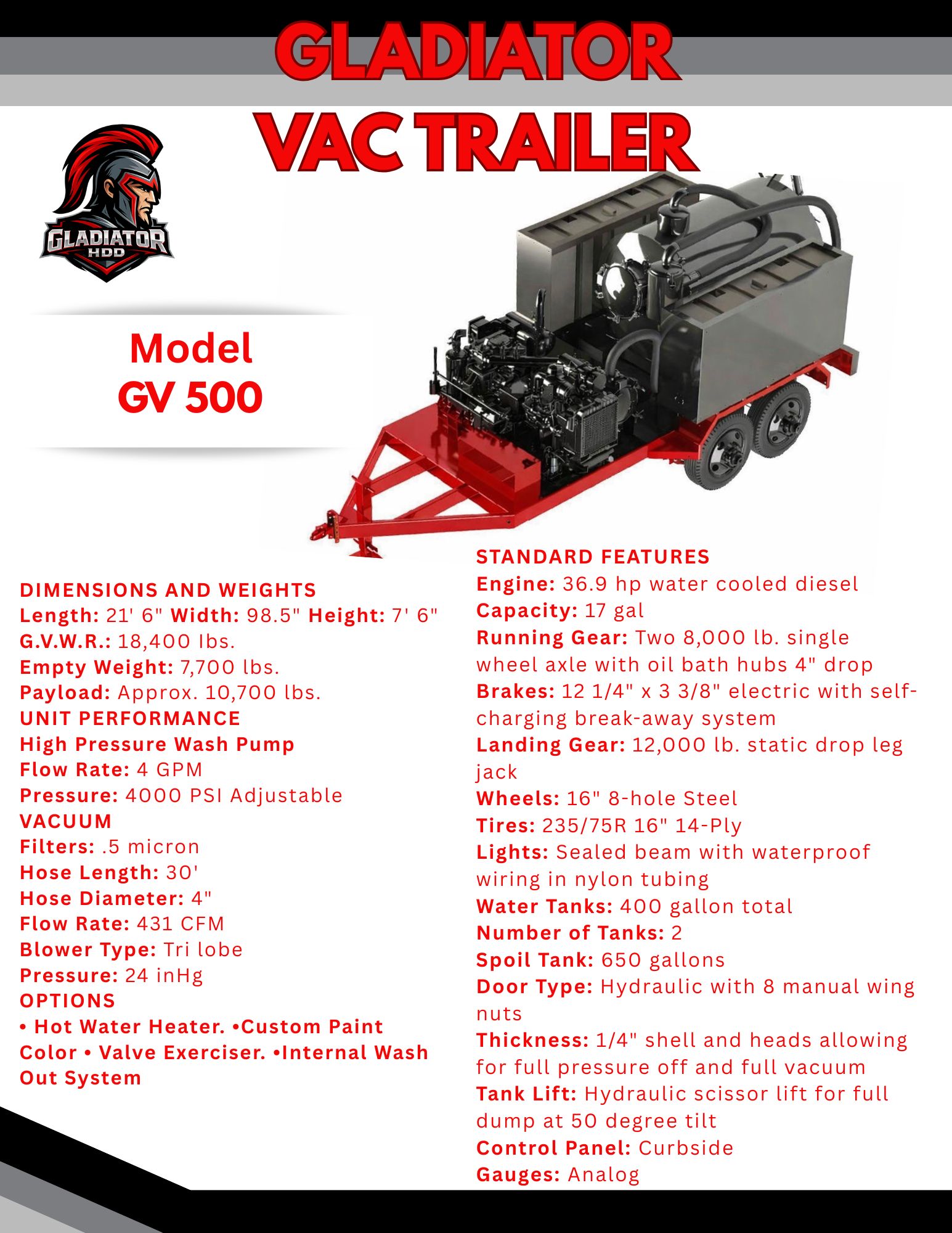

Official Product Sheet

Download the official Gladiator GV500 product specification sheet: View GV500 Spec Sheet. Contact Gladiator HDD or your authorized dealer for current pricing and availability.
